Description

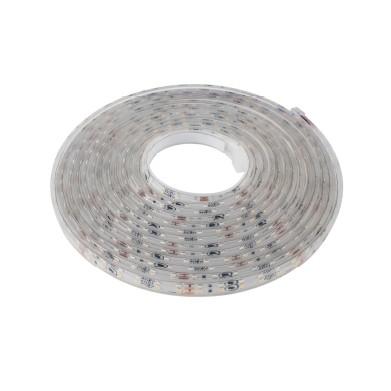

Luminiz offers a wide spectrum of high quality SMD Tapelight. Our tapelight line offers 3 standard colour temperatures in 3000K,4000K and 5000K as well as RGB and RGB+W waterproof (IP68) and non-waterproof options.
Downloads:
- Tapelight 7.2W Non Waterproof (5 Meter) Specsheet
- Tapelight 14.4W Non Waterproof (5 Meter) Specsheet
- Tapelight 7.2W Waterproof (5 Meter) Specsheet
- Tapelight 14.4W Waterproof (5 Meter) Specsheet
- Tapelight RGB Non-Waterproof Specsheet
- Tapelight RGB Waterproof Specsheet
- Tapelight RGB+W Specsheet
7.2W Non-Waterproof
TL015730I | TL015740I | TL015750I
14.4W Non-Waterproof
TL0151430I | TL0151440I | TL0151450I
7.2W Waterproof (5M)
TL025730O | TL025740O | TL025750O
14.4W Waterproof (5M)
TL0251430O | TL0251440O | TL0251450O
14.4W RGB Non-Waterproof
TL03514RGB
14.4W RGB Waterproof
TL04514RGB
14.4W RGB+W Non-Waterproof
TL05514RGBW
Available in 3000K, 4000K, 5000K, RGB and RGB+W
- Able to use multiple units on the same driver
- Cuttable and Bridgeable
- Maintenance Free
- Silent Operation
- Instant On
- Excellent for hot and cold weather applications
- Environmentally friendly
- No UV or IR Radiation
- Extensive range of applications
| Voltage (V): | 24V |
| LED Type: | SMD3528 |
| LED Quantity: | 90 per meter |180 per meter |
| IP Rating: | IP20 or IP68 |
| Length: | 5 Meters |
| Lumen (lm): | 7.2W - 3000K [430lm] 4000K [480lm] 5000K [530lm] |
| 14.4W - (3000K [1026lm] 4000K [1100lm] 5000K [1150lm] | |
| Power (W/M): |
7.2 W/M or 14.4 W/M |
| CRI: | >90 |
| Dimmable: | Yes |
| Voltage (V): | 24V |
| LED Type: | SMD5050 |
| LED Quantity: | 60 LEDS/M |
| IP Rating: | RGB [IP20 or IP68] RGB+W [IP20] |
| Length: | 5 Meters |
| Lumen (lm): | RGB [ 420lm p/M] RGB+W [8-10lm /LED RGB - 20-22lm /LED White] |
| Power (W/M): | 14.4 W/M |
***RGB and RGB+W tapelight can only be used with a Luminiz RGB Tapelight Driver
